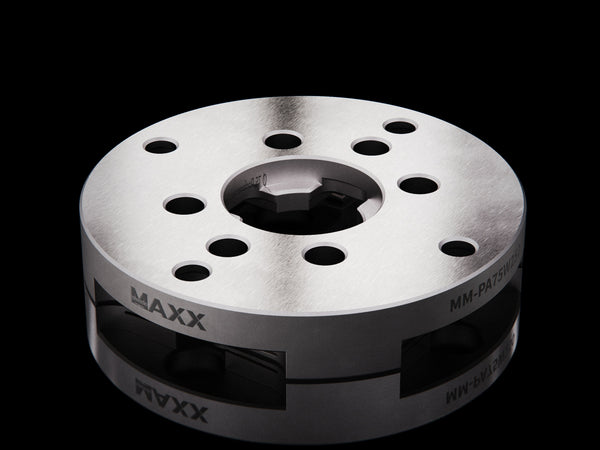

MaxxMacro 75 Performance Rust Proof Pallet with .250" Dowels
€117,95
Regular price
€117,95 EUR
Sale
MaxxMacro 75 Performance Rust Proof Pallet with .250" Dowels comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system....
MaxxMacro 75 Performance Rust Proof Pallet with .250" Dowels comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
High quality materials.
100% cross-compatible with OEM system
Product Information:
MaxxMacro Pallet 75mm diameter with 250 precision dowels - MaxxPerformance is 100% cross compatible with System 3R 3R-651.75E-P macro pallet
MaxxMacro HP Pallet 75mm is machined from solid block 440C Stainless Steel and provides the highest performance and quality available. This is not a cast pallet
.250 diameter dowels in same center as OEM System 3R Pallets
Product Details:
Product Name
MaxxMacro 75 Performance Rust Proof Pallet with .250" Dowels
SKU
MM-PA75W250 (MX-65175HP)
Pallet Included
See print
System
MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability
0.002mm
Material
See above
Cross-Compatible
3R-651.75E-P
Dimensions
-
Weight
-
Returns Policy
You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.
"In general any visual wear was very minimal and unmeasurable."
Report characteristics provided by Independent source "Dynamic Innovative Mold Building" a BIG thanks to them for allowing Maxx to show them the "Proofs in the pudding" ..my kids would call me a boomer...
Test assumes the average electrode is cycled into a 3R-carbide chuck 5 times per week (260 times per year)
Test Cycled one Maxx Tooling 50mm holder 2,844 times capturing offset data every 6th tool change
Holder reference elements were noted to be out of square by .0005 prior to test, simulating potential worse case scenario
Reference elements had thin layer of red marker applied prior to test to visually show any wear on bearing surfaces
Before and after CMM results were taken to compare and verify offset data of the electrode
In general any visual wear was very minimal and unmeasurable
All offset data and CMM Data appear to be within an acceptable range
Assumptions
Test assumes the average electrode is cycled into a 3R-carbide chuck 5 times per week (260 times per year)
Test Cycled one Maxx Tooling 50mm holder 2,844 times capturing offset data every 6th tool change
In general any visual wear was very minimal and unmeasurable
All offset data and CMM Data appear to be within an acceptable range
Reference elements seat using corner like 3R, not on an angled surface
