MaxxMacro 54 Manual Chuck with Mounting Plate CNC Manual
€1.157,95
Regular price
€1.157,95 EUR
Sale

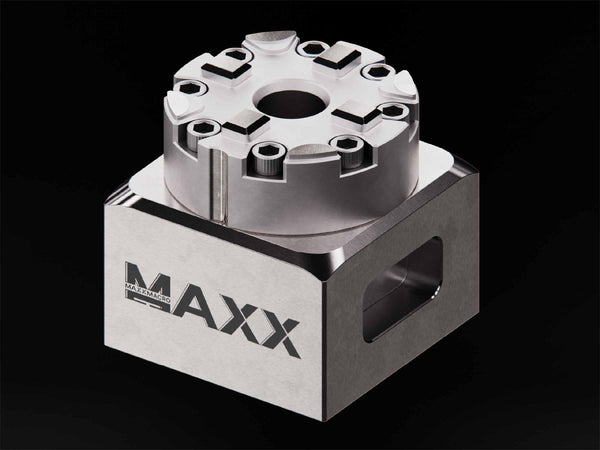

MaxxMacro 54 Manual Chuck with Mounting Plate CNC Manual comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system....
MaxxMacro 54 Manual Chuck with Mounting Plate CNC Manual comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. MaxxMacro 54 Manual Chuck with Mounting Plate CNC Manual is specifically designed to be quickly mounted to any CNC machine table with simple machine clamps.
MaxxDesign Exclusive Features:
High quality materials: Chuck is 440C stainless steel design.
Easy installation: it does not require and special plate or fixture to mount securely to your machine.
Comes with one side ground for easy laydown or grinder work.
This chuck is 90 degree indexable allowing constant location off single ground side.
MaxxMacro 54 Manual Chuck with Mounting Plate CNC Manual
SKU
MM-MCMPS001 (MX-0CNCM)
Pallet Included
-
System
MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability
0.002mm
Material
Stainless Steel 440C 57-60HRC (Base is Stainless Steel 420)
Cross-Compatible
3R-610.21-S
Dimensions
-
Weight
-
Returns Policy
You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.
Introducing the MaxxMacro 54 Manual Chuck User Kit 62841S: Elevate Your CNC Workholding Efficiency
In the fast-paced world of CNC machining, having the right tools is critical to maintaining productivity and precision. The MaxxMacro 54 Manual Chuck User Kit 62841S is here to transform the way you handle workpieces, offering a comprehensive, high-performance solution for your workholding needs. Designed with flexibility and cost-efficiency in mind, this kit seamlessly integrates into your production process, helping you achieve more with less.
Why Choose the MaxxMacro 54 User Kit?
The MaxxMacro 54 Manual Chuck User Kit 62841S is fully compatible with the widely recognized System 3R system, giving you the freedom to enhance your current setup without the need for costly overhauls. The kit provides an innovative alternative to existing workholding solutions, enabling businesses to boost operational efficiency while reducing production costs. Whether you’re looking to upgrade your existing setup or are just starting to explore the advantages of modular workholding systems, this kit delivers reliability and performance at an accessible price point.
What’s Inside the MaxxMacro 54 Manual Chuck User Kit?
Here’s a breakdown of what you can expect in the 62841S kit:
(x1) MaxxMacro 54 Manual Chuck with Mounting Plate CNC Manual (MM-MCMPS001 / MX-0CNCM): A durable and precise chuck that ensures secure mounting and easy handling.
(x1) MaxxMacro 54 Stainless Control Ruler High Performance (MM-MA54S001 / MX-CH656): Offering accurate alignment for consistent and reliable machining.
(x6) MaxxMacro Pallet 54 Stainless Cast Plated (MM-PA54S013 / MX-0013M-1): Essential for stable and reliable workpiece mounting.
(x4) MaxxMacro 54 Aluminum Slotted Electrode Holder U25 (MM-US54A025 / MX-3RU25BUD): Designed to hold electrodes securely and accommodate a range of applications.
(x4) MaxxMacro 54 Aluminum Pocket Electrode Holder S25 (MM-SP54A025 / MX-3RSAL-25): Another versatile option for electrode holding, adding flexibility to your setup.
(x3) MaxxMacro Drawbar 6052 Short Manual Stainless (MM-DRWBR101 / MX-STDR3R-1): A manual drawbar that enhances the ease of setup.
(x3) MaxxMacro Drawbar Long Automatic 605 Stainless (MM-DRWBR201 / MX-605DB-10) or MaxxMacro Drawbar Macro Combi 40516 Stainless (MM-DRWBR110 / MX-40516): Providing an option for automatic drawbars, these components ensure fast and secure clamping.
Key Benefits of the MaxxMacro 54 System
Enhanced Compatibility: Fully compatible with System 3R, allowing seamless integration into your existing setup.
Boosted Flexibility: With a wide array of included components, the kit ensures that your CNC operations are adaptable to a variety of tasks and workpieces.
Cost-Efficient: Save on operational costs by investing in a workholding system that’s designed to deliver precision and efficiency over the long haul.
Increased Productivity: By simplifying the setup and handling of workpieces, you can achieve faster turnaround times and higher output without compromising on quality.
Perfect for CNC Machining and Wire EDM Applications
Whether you're focused on CNC milling or Wire EDM, the MaxxMacro 54 Manual Chuck User Kit ensures that your workpieces are securely mounted, precisely aligned, and ready for high-performance machining. The system’s versatile design supports a wide range of materials and applications, making it an ideal choice for businesses looking to optimize their production workflows.
Upgrade Your Workholding Setup Today
If you're ready to take your CNC machining to the next level, the MaxxMacro 54 Manual Chuck User Kit 62841S is the solution you've been waiting for. Its blend of performance, compatibility, and affordability make it a must-have for any modern machining operation.
At MaxxTooling, we're always looking for ways to improve your experience with our products and services. This year, we introduced a major update to our SKU system, designed to simplify product identification, improve inventory management, and enhance your overall experience. Here’s what this new system brings to the table—and how it benefits you.
What is a SKU? A SKU (Stock Keeping Unit) is a unique identifier used to track a product in inventory and make it easy to identify.
Why Did We Update the SKU System?
As our product family expands, we needed a improved SKU system that would deliver the following benefits:
Consistency and Clarity: SKUs now follow a single, well-defined rule, making them easier to read and understand.
Family and Product Matching: Each SKU reflects its product family, allowing you to identify compatible items more easily.
Support for Future Growth: The new format makes it simple to accommodate new product introductions, family expansions, and variations.
Integration with Adapter Plates and Custom Products: The revised structure also allows for easier integration of adapter plate codes, optional parts, and other customization options.
Better ERP and Spreadsheet Integration: Standardized SKUs streamline data entry, making it easier to integrate with ERP systems, spreadsheets, and custom properties.
What Does the New SKU Format Look Like?
Our SKUs now follow a standardized, informative structure:
MX-XXXXMSSS(-O-CODE)
Here’s what each section means:
Prefix (MX/MM): Identifies MaxxTooling or MaxxMacro as the source, with additional prefixes planned for future products.
Family Code (XXXX): A four-character code indicating the product family.
Material Code (M): One character indicating the material.
Size Code (SSS): Three digits denoting the product’s size or model.
Optional Code (O): A single character used for optional features, such as performance enhancements, index-disabled features, MXRefix systems, etc.
Adaptation Code (-CODE): Optional codes for adapter plates, machine-specific modifications, or client custom modifications.
Revision Dates and Compatibility Page
The SKU update process has occurred gradually over the year, with different products receiving updates at different times. Each updated SKU has a specific Revision Date that you can check to ensure compatibility with your needs.
To make this transition easier, we’ve created a dedicated SKU Compatibility Page, where you can:
Look up compatibility between old and new SKU formats
Check revision dates for each product
Access the latest product pages for detailed specifications
New Laser Markings for Improved Operator Experience
Along with our SKU system update, we’ve also made a significant improvement to the way we laser engrave our products. All of our items now feature new, detailed laser markings that provide essential product information directly on the part. This includes data such as ports, maximum torque values, and other key specifications. These updates make it easier for operators to quickly identify important features, improving workflow efficiency and reducing the chance of errors. The enhanced laser markings are part of our ongoing commitment to making your experience with our products as seamless and efficient as possible.
Our Commitment to Continual Improvement
Updating our SKU system is just the beginning. As we continue expanding and enhancing our product offerings, we’ll keep refining this system to support future growth and product variations. Our goal is to make it as easy as possible for you to select, track, and integrate our products into your workflows.
Thank you for choosing MaxxTooling as your workholding partner. Please explore our SKU Compatibility Page for more information, or feel free to reach out if you have any questions.
*This update was applied to the MaxxMacro® and MaxxMagnum® brands, but currently does not apply to Maxx-ER® or MaxxUPC®.
